Business Enquiry for Corrugated Tanks



PANEL

Type of Rib
TYPE - R1
CORRUGATED WALL
WITHOUT EMBOSSING
TYPE - R2
CORRUGATED WALL
WITH HEADER
TYPE - R3
CORRUGATED WALL
WITH EMBOSSING
TYPE - R4
CORRUGATED WALL
WITH HEADER & EMBOSSING

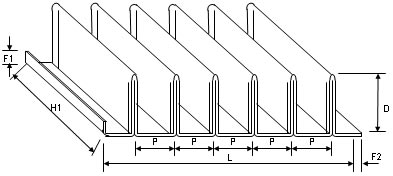

PANEL WIDTH H1 500 – 1600 mm
SHEET THICKNESS S 1.0/1.4 mm
RIB GAP (INSIDE) G 8 mm
RIB DEPTH D 50 – 400 mm
RIB PITCH P 40 mm To 50 mm
No. OF CORRUGATIONS n AS REQUIRED
PANEL LENGTH L AS REQUIRED (TO CORRESPOND TO TANK INTERNAL DIMENSION)
WELD FLAP F1 10 mm (AT 90° TURNED OUTWARDS)
WELD FLAP F2 10 mm (STRAIGHT)
No. OF PANELS N AS REQUIRED
TYPE OF RIB R R1 or R2 or R3 or R4 ( ‘D’ MIN. 160 FOR R3 or R4)


SHORT SIDE OF T/F

H1 S G D P n L F1 F2 N R


Remarks
  H1 S G D P n L F1 F2 N R
LONG
SIDE
OF T/F


Remarks

* Design & specifications subject to change.
* Tolerance allowed + 2 mm each meter.
